Connector End View C2114 - Information Control Module

OEM Connector End Views

Source configuration appliesSource reference 4,271HTML edition

← Chapter contents Manual collection

INFORMATION CONTROL MODULE

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

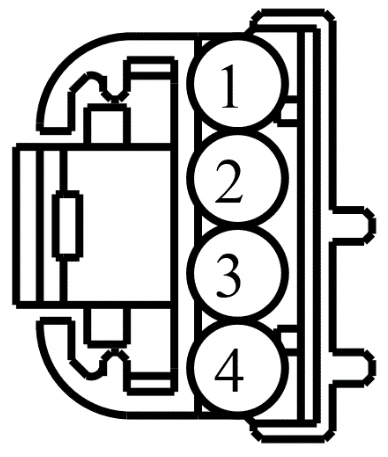

Connector End View C2114 - Information Control Module — original illustration 1, reference 4271Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	SBP32 (VT-RD) 22		FUSE - 32 OR CIRCUIT BREAKER
2	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD214 (BK-BU) 20		GROUND - INSTRUMENT PANEL STRUCTURE
