Connector End View C2280g - Body Control Module (Bcm)

OEM Connector End Views

Source configuration appliesSource reference 4,296HTML edition
← Chapter contentsManual collection

Color

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

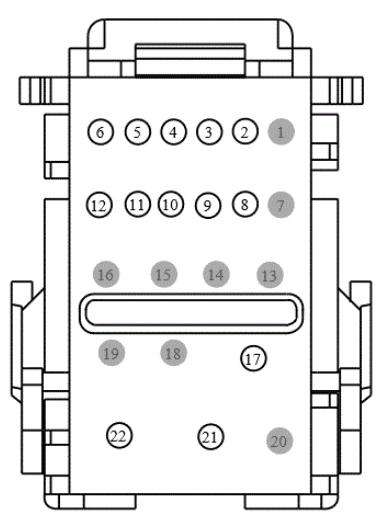

Connector End View C2280g - Body Control Module (Bcm) — original illustration 1, reference 4296Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

CLF05 (BU-GN)

18

CTRL MOD. - BEAM LOW RIGHT

2

CLF05 (BU-GN)

20

CTRL MOD. - BEAM LOW RIGHT

3

CLS30 (VT-WH) 22

RELAY - PARK LAMP
