Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBB07 (WH-RD) | 10 | FUSE - 7 OR CIRCUIT BREAKER |

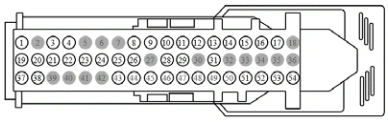

CONNECTOR VIEWS > CONNECTOR END VIEW C2342 - SYNC MODULE [APIM]
Connector:C2342
Description
SYNC MODULE [APIM]
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | |
2 | * | * | Not Used | |
3 | VMN14 (VT-WH) | 26 | CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) + |
