Connector End View C2280h - Body Control Module (Bcm) — OEM Connector End Views · Reference 4298

17 SBB24 (VT-RD) 12 FUSE - 24 OR CIRCUIT BREAKER 18 * * Not Used 19 * * Not Used 20 * * Not Used 21 SBB08 (VT-RD) 10 FUSE - 8 OR CIRCUIT BREAKER 22 SBB06 (BN-RD) 10 FUSE - 6 OR CIRCUIT BREAKER

Original table alignment retained · Scroll horizontally if needed

CONNECTOR VIEWS > CONNECTOR END VIEW C2280H - BODY CONTROL MODULE

(BCM)

Connector:C2280H

Description

BODY CONTROL MODULE (BCM)

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

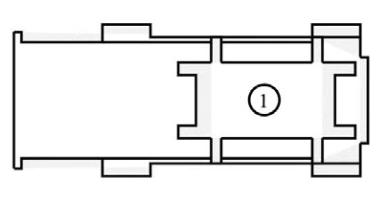

Connector End View C2280h - Body Control Module (Bcm) — original illustration 1, reference 4298Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Ford_Mustang_all_2015-2017.pdf · source reference 4298
