Connector End View C3050 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,371HTML edition
← Chapter contentsManual collection

6

VR210 (BU-BN)

20

SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD

Available Pigtail Kits

Service Part Number:

9U2Z-14S411-BB

Gauge:

20

Pigtail Kit Part Number

Pin material:

WPT-1338

Silver

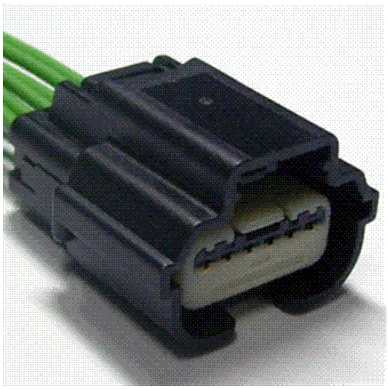

Connector End View C3050 - Inline — original illustration 1, reference 4371Original colors & callouts · Select to enlarge

Cavities:

6

Vehicle Uses

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Module - Occupant Classification

Sensor - Acceleration Pedal Position

Sensor - Transmission Range

Switch - Door Ajar / Interior Lamp

CONNECTOR VIEWS > CONNECTOR END VIEW C3050 - INLINE

InlineC3050

Description

INLINE

Color

BK

Ford_Mustang_all_2015-2017.pdf · source reference 4371
