Connector End View C3040 - Front Seat Cushion Blower Motor RH

OEM Connector End Views

Source configuration appliesSource reference 4,368HTML edition
← Chapter contentsManual collection

LT GY

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

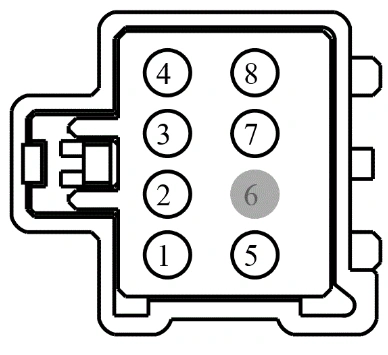

Connector End View C3040 - Front Seat Cushion Blower Motor RH — original illustration 1, reference 4368Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CHS07 (GY-BU)

4

CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +

2

RHS07 (BU)

4

CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -

3

CHS08 (BN-YE)

18

CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +

4

RHS08 (VT-WH)

18

CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -

5

VHS27 (WH-OG)

20

SENSOR - CUSHION TEMP. PASSENGER
