Connector End View C3043 - Occupant Classification System Module (Ocsm)

OEM Connector End Views

Source configuration appliesSource reference 4,370HTML edition
← Chapter contentsManual collection

Base Part #

part# N/A

Service Pigtail

See Below

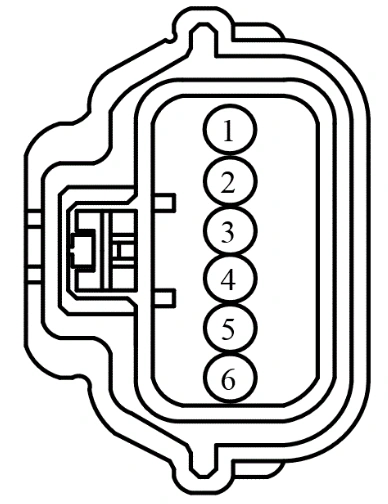

Connector End View C3043 - Occupant Classification System Module (Ocsm) — original illustration 1, reference 4370Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBX02 (BN-RD)

18

POWER - SEAT # RUN/START OCCUPANT CLASSIFICATION MODULE

2

VDB04 (WH-BU)

18

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH

3

VDB05 (WH)

18

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW

4

GD901 (BK)

20

GROUND - PASSENGER SEAT # RESTRAINTS CLEAN

5

LR142 (YE-BU)

20

CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +
