Connector End View C3040 - Front Seat Cushion Blower Motor RH — OEM Connector End Views · Reference 4367

7	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL
8	RHS20 (GN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP.

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-BCB

Gauge:

Pigtail Kit Part Number

16 WPT-1128

Pin material:

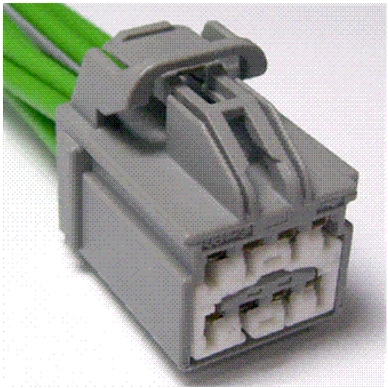

Connector End View C3040 - Front Seat Cushion Blower Motor RH — original illustration 1, reference 4367Original colors & callouts · Select to enlarge

Silver

Cavities:

8

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Mirror - Sideview

Solenoid - Brake Shift Park Interlock

Switch - Headlamp

Switch - Power Window - Quarter Glass

Switch - Sliding Door Contact

CONNECTOR VIEWS > CONNECTOR END VIEW C3040 - FRONT SEAT CUSHION

BLOWER MOTOR RH

Connector:C3040

Description

FRONT SEAT CUSHION BLOWER MOTOR RH

Color

Ford_Mustang_all_2015-2017.pdf · source reference 4367
