Connector End View C3039 - Front Seat Backrest Blower Motor RH — OEM Connector End Views · Reference 4365

6 * * Not Used VHS18 CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER 7 20 (BN-GN) SPEED CONTROL RHS05 CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION 8 20 (YE-VT) TEMP.

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-ZTB

WPT-1034

Gauge:

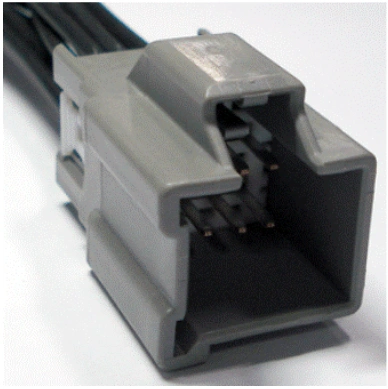

Connector End View C3039 - Front Seat Backrest Blower Motor RH — original illustration 1, reference 4365Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

8

Vehicle Uses

Lamp - Park/Turn/Stop

Lamp - Park/Turn/Stop/Reverse - Inline (Male)

CONNECTOR VIEWS > CONNECTOR END VIEW C3039 - FRONT SEAT BACKREST

BLOWER MOTOR RH

Connector:C3039

Description

FRONT SEAT BACKREST BLOWER MOTOR RH

Color

LT GY

Harness

Ford_Mustang_all_2015-2017.pdf · source reference 4365
