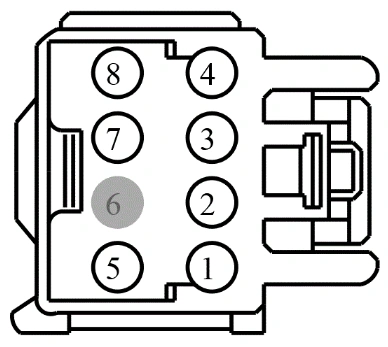

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CHS01 (GY-VT) 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER + | ||
2 | RHS01 (WH-VT) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER - | |
3 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | |
4 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | |
5 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | |
6 | * | * | Not Used | |
7 | CHS09 (GY) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW | |
8 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER SIDE |
