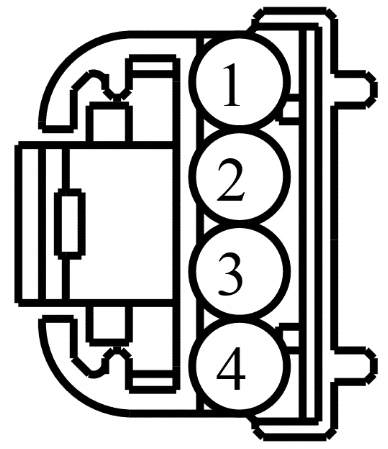

Service Pigtail
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * (*) | * | ILLUMINATION GROUND | |
2 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1 | |
3 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT) | |
4 | * (*) | * | ILLUMINATION FEED |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1013 | Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: |
