Connector End View C2610 - Luggage Compartment Lid Release Switch — OEM Connector End Views · Reference 4357

3 VLN04 (VT-GY) 22 CTRL MOD. - IP/SWITCH ILLUMINATION 4 * * Not Used 5 * * Not Used 6 CPL45 (BN-WH) 22 SWITCH - LIFTGATE/DECKLID RELEASE

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

8U2Z-14S411-JB

Gauge:

18

Pigtail Kit Part Number Pin material:

WPT-1164 Silver

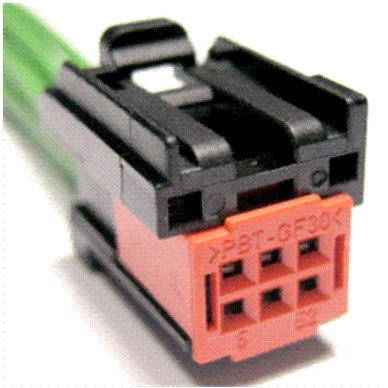

Connector End View C2610 - Luggage Compartment Lid Release Switch — original illustration 1, reference 4357Original colors & callouts · Select to enlarge

Cavities:

6

Vehicle Uses

Switch - Deck Lid / Hatch Release

Switch - Deck Lid / Lift Gate Ajar

Switch - Hazard Warning

Switch - Heated Back Light (Rear Defrost)

Switch - Power Liftgate

Switch - Reverse Park Aid

Switch - Start/Stop

Switch - Sunshade

Switch - Traction Control

Ford_Mustang_all_2015-2017.pdf · source reference 4357

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
