Connector End View C2610 - Luggage Compartment Lid Release Switch

OEM Connector End Views

Source configuration appliesSource reference 4,356HTML edition

← Chapter contents Manual collection

Squib - Airbag (Passenger)

CONNECTOR VIEWS > CONNECTOR END VIEW C2610 - LUGGAGE COMPARTMENT

LID RELEASE SWITCH

Connector:C2610

Description

LUGGAGE COMPARTMENT LID RELEASE SWITCH

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

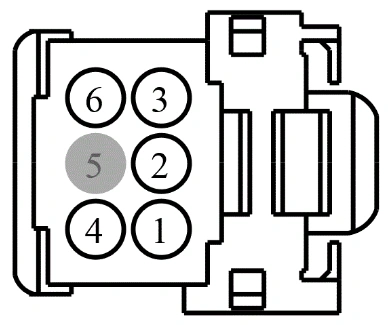

Connector End View C2610 - Luggage Compartment Lid Release Switch — original illustration 1, reference 4356Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE
