CONNECTOR VIEWS > CONNECTOR END VIEW C2998 - STEERING WHEEL SWITCH

LH UPPER

Connector:C2998

Description

STEERING WHEEL SWITCH LH UPPER

Color

Harness

14K147

Base Part #

part# N/A

Service Pigtail

See Below

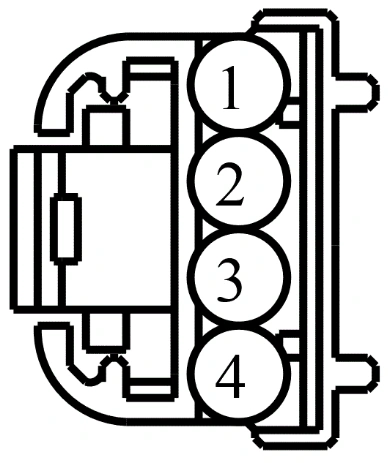

Connector End View C2998 - Steering Wheel Switch LH Upper — original illustration 1, reference 4358Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	ILLUMINATION GROUND
2	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1

Ford_Mustang_all_2015-2017.pdf · source reference 4358

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
