Connector End View C2607 - Passenger Knee Airbag — OEM Connector End Views · Reference 4355

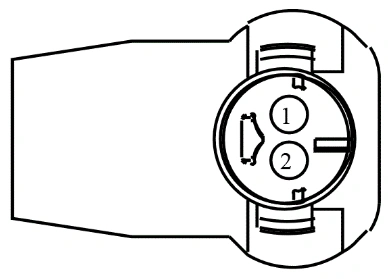

Connector End View C2607 - Passenger Knee Airbag — original illustration 1, reference 4355Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR169 (BU-WH)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +
2	RR169 (WH-GN)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-BHA

Pigtail Kit Part Number Gauge:

WPT-1225 20

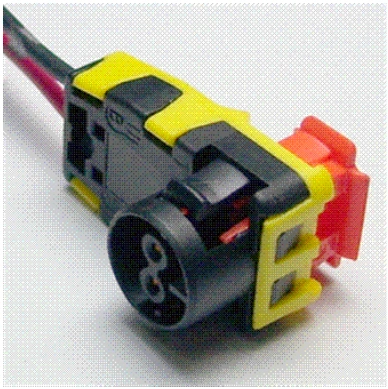

Connector End View C2607 - Passenger Knee Airbag — original illustration 2, reference 4355Original colors & callouts · Select to enlarge

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Squib - Airbag (Driver)
