Connector End View C2999 - Steering Wheel Switch RH Upper

OEM Connector End Views

Source configuration appliesSource reference 4,359HTML edition

3	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
4	* (*)	*	ILLUMINATION FEED

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

9U2Z-14S411-TA

WPT-1013

Gauge:

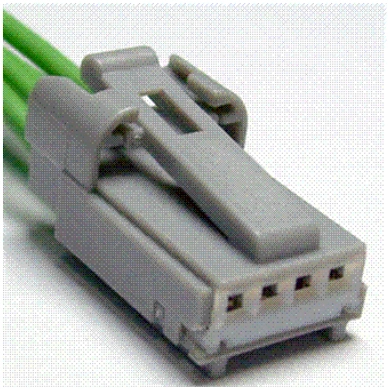

Connector End View C2999 - Steering Wheel Switch RH Upper — original illustration 1, reference 4359Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

4

Vehicle Uses

Module - Auto Lamps

Sensor - Sunload

CONNECTOR VIEWS > CONNECTOR END VIEW C2999 - STEERING WHEEL SWITCH

RH UPPER

Connector:C2999

Description

STEERING WHEEL SWITCH RH UPPER

Color

Harness

14K147

Base Part #

part# N/A
