Connector End View C3039 - Front Seat Backrest Blower Motor RH

OEM Connector End Views

Source configuration appliesSource reference 4,366HTML edition
← Chapter contentsManual collection

14D233

Base Part #

part# N/A

Service Pigtail

See Below

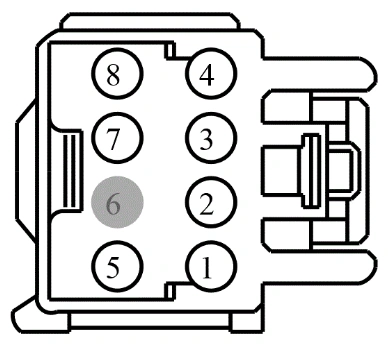

Connector End View C3039 - Front Seat Backrest Blower Motor RH — original illustration 1, reference 4366Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CHS06 (BU-BN)

14

CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER +

2

RHS06 (WH)

14

CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -

3

CHS08 (BN-YE)

18

CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +

4

RHS08 (VT-WH)

18

CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -

5

VHS36 (YE-BU)

20

SENSOR - BACK TEMP. PASSENGER

6

*

*

Not Used
