Connector End View C3210 - LH B-Pillar Side Impact Sensor — OEM Connector End Views · Reference 4392

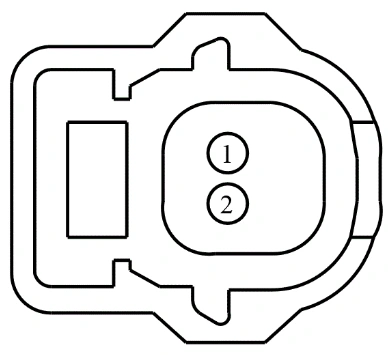

Connector End View C3210 - LH B-Pillar Side Impact Sensor — original illustration 1, reference 4392Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR219 (GN-WH)	22	SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE
2	RR133 (GY-BN)	22	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE -

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

8U2Z-14S411-AAC

WPT-1314

Gauge:

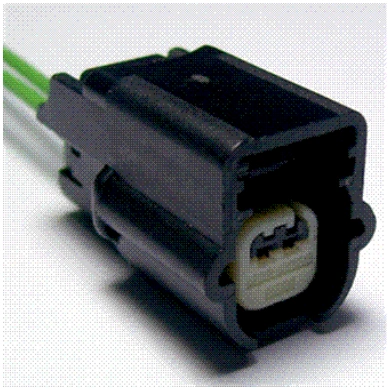

Connector End View C3210 - LH B-Pillar Side Impact Sensor — original illustration 2, reference 4392Original colors & callouts · Select to enlarge

20

Pin material:

Silver

Cavities:

2

Vehicle Uses

Sensor - Crash (Engine Compartment)

Sensor - Seat Track Position

Ford_Mustang_all_2015-2017.pdf · source reference 4392
