Connector End View C3215 - Front Seat Power Lumbar Assembly LH

OEM Connector End Views

Source configuration appliesSource reference 4,395HTML edition

← Chapter contents Manual collection

Connector:C3215

Description

FRONT SEAT POWER LUMBAR ASSEMBLY LH

Color

Harness

14D232

Base Part #

part# N/A

Service Pigtail

See Below

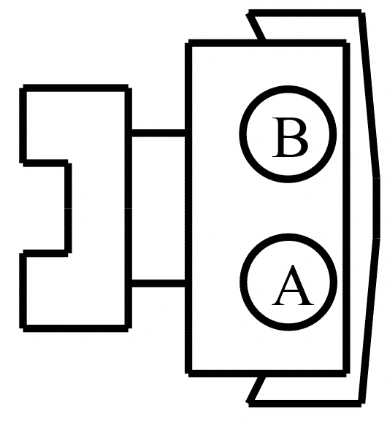

Connector End View C3215 - Front Seat Power Lumbar Assembly LH — original illustration 1, reference 4395Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
A	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE
B	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP

Available Pigtail Kits

Ford_Mustang_all_2015-2017.pdf · source reference 4395
