Connector End View C3240 - Seat Position Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 4,398HTML edition

← Chapter contents Manual collection

Service Part Number:

DU2Z-14S411-EA

Pigtail Kit Part Number

Gauge:

WPT-1329

20

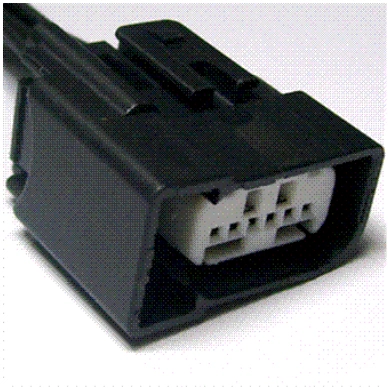

Connector End View C3240 - Seat Position Sensor RH — original illustration 1, reference 4398Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

6

Vehicle Uses

Antenna - Keyless Entry

Handle - Decklid

Switch - Keyless Entry

Switch - Seatbelt

CONNECTOR VIEWS > CONNECTOR END VIEW C3240 - SEAT POSITION SENSOR RH

Connector:C3240

Description

SEAT POSITION SENSOR RH

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below
