Connector End View C3240 - Seat Position Sensor RH — OEM Connector End Views · Reference 4399

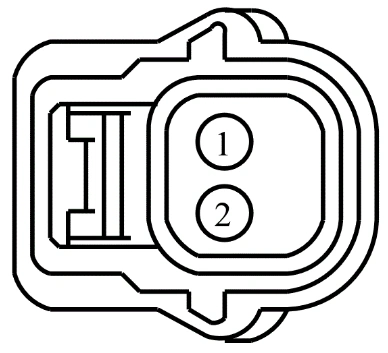

Connector End View C3240 - Seat Position Sensor RH — original illustration 1, reference 4399Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD901 (BK)	20	GROUND - PASSENGER SEAT # RESTRAINTS CLEAN
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION PASSENGER

Available Pigtail Kits

Service Part Number:

8U2Z-14S411-AAC

Pigtail Kit Part Number

Gauge:

WPT-1314

20

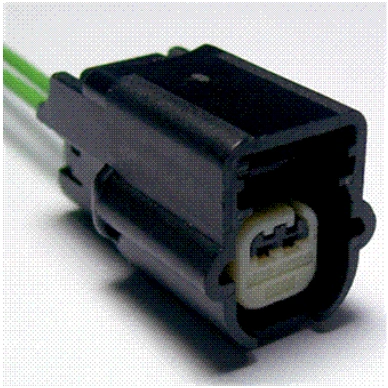

Connector End View C3240 - Seat Position Sensor RH — original illustration 2, reference 4399Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

2

Vehicle Uses

Sensor - Crash (Engine Compartment)

Sensor - Seat Track Position

Sensor - Side Impact
