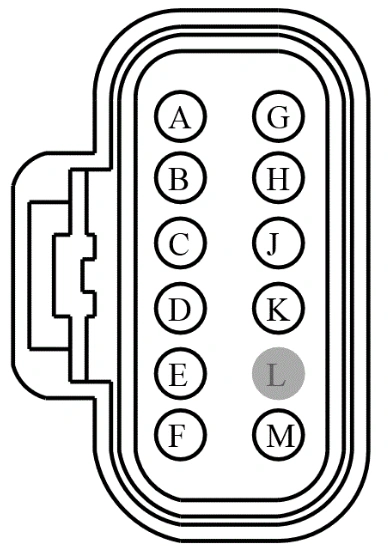

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
A | CHS07 (GY-BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + | |
B | RHS07 (BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER - | |
C | CHS06 (BU-BN) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | |
D | RHS06 (WH) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER - | |
E | CBX01 (GN-RD) | 4 | POWER - SEAT # RUN/START | |
F | CBX01 (GN-RD) | 4 | POWER - SEAT # RUN/START |
