Connector End View C3265b - Front Seat Climate Control Module [Scme] — OEM Connector End Views · Reference 4405

VHS36 4 20 SENSOR - BACK TEMP. PASSENGER (YE-BU) RHS20 CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR 5 20 (GN-BU) BACK TEMP. 6 * * Not Used 7 VHS26 (VT) 20 SENSOR - CUSHION TEMP. DRIVER RHS05 CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR 8 20 (YE-VT) CUSHION TEMP. CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR 9 CHS14 (GN) 20 HIGH CHS29 10 20 SWITCH - SEAT HEATER FRONT DRIVER SIDE (WH-BU)

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1174 AU2Z-14S411-BLA

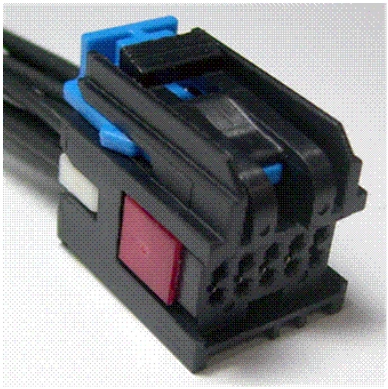

Connector End View C3265b - Front Seat Climate Control Module [Scme] — original illustration 1, reference 4405Original colors & callouts · Select to enlarge

Gauge:

20

Pin material:

Tin

Cavities:

10

Vehicle Uses

Module - Climate Control Seat

Ford_Mustang_all_2015-2017.pdf · source reference 4405
