CONNECTOR VIEWS > CONNECTOR END VIEW C3265C - FRONT SEAT CLIMATE

CONTROL MODULE [SCME]

Connector:C3265C

Description

FRONT SEAT CLIMATE CONTROL MODULE [SCME]

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

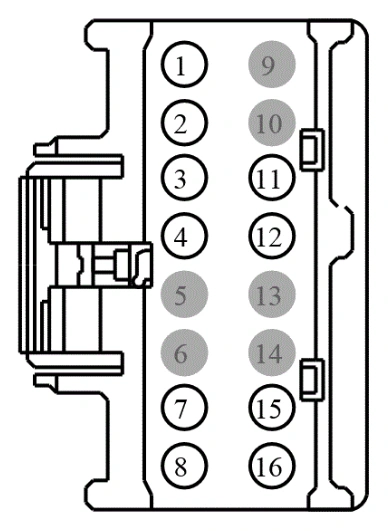

Connector End View C3265c - Front Seat Climate Control Module [Scme] — original illustration 1, reference 4406Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
