CONNECTOR VIEWS > CONNECTOR END VIEW C3265B - FRONT SEAT CLIMATE

CONTROL MODULE [SCME]

Connector:C3265B

Description

FRONT SEAT CLIMATE CONTROL MODULE [SCME]

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

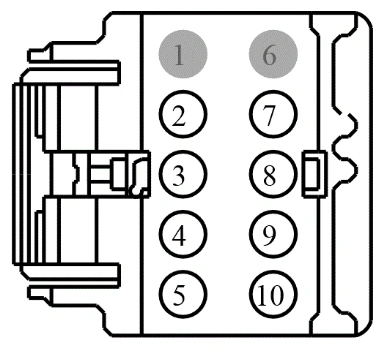

Connector End View C3265b - Front Seat Climate Control Module [Scme] — original illustration 1, reference 4404Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER
3	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.
