Connector End View C3265a - Front Seat Climate Control Module [Scme] — OEM Connector End Views · Reference 4403

CHS02 CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER G 4 (YE-BU) + RHS02 CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER H 4 (BU-OG) - CHS01 J 4 CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER + (GY-VT) RHS01 K 4 CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER - (WH-VT) L * * Not Used GD904 M 4 GROUND - DRIVER SEAT # SEAT SWITCH (BK-BU)

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 3U2Z-14S411-ZMB

WPT-928 Gauge:

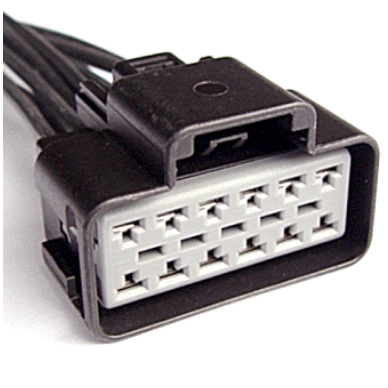

Connector End View C3265a - Front Seat Climate Control Module [Scme] — original illustration 1, reference 4403Original colors & callouts · Select to enlarge

12

Pin material:

Tin

Cavities:

12

Vehicle Uses

Module - Climate Control Seat

Switch - Seat (driver)

Switch - Seat (passenger)

Ford_Mustang_all_2015-2017.pdf · source reference 4403

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
