CONNECTOR VIEWS > CONNECTOR END VIEW C3245 - SELECTOR LEVER

ASSEMBLY

Connector:C3245

Description

SELECTOR LEVER ASSEMBLY

Color

LT GY

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

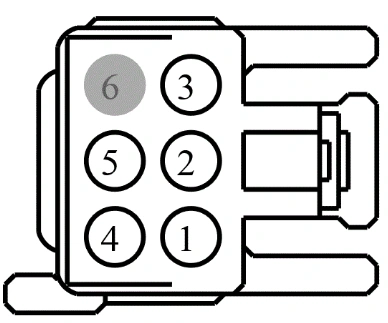

Assembly — original illustration 1, reference 4400Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
