Connector End View C3276 - Power Folding Mirror Relay

OEM Connector End Views

Source configuration appliesSource reference 4,407HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1165 AU2Z-14S411-BGA

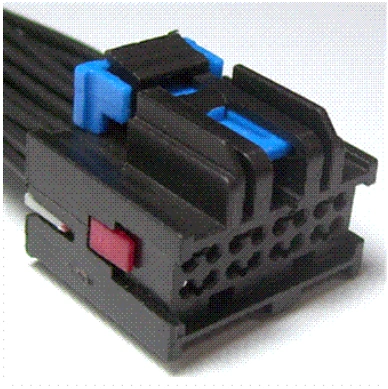

Connector End View C3276 - Power Folding Mirror Relay — original illustration 1, reference 4407Original colors & callouts · Select to enlarge

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses

Module - Climate Control Seat

CONNECTOR VIEWS > CONNECTOR END VIEW C3276 - POWER FOLDING MIRROR

RELAY

Connector:C3276

Description

POWER FOLDING MIRROR RELAY

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
