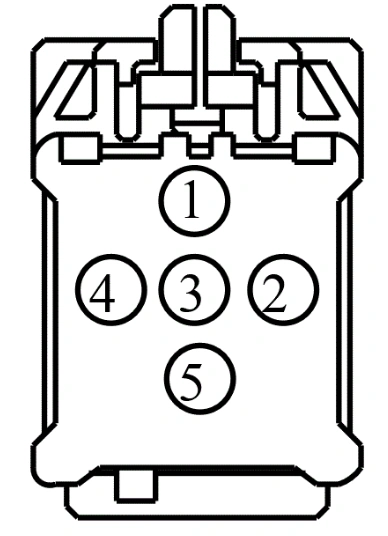

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD238 (BK-WH) | 16 | GROUND - COWL SIDE/PILLAR A RIGHT | |
2 | CPM02 (BU) | 20 | CTRL MOD. - FOLD MIRRORS FOLD POSITION | |
3 | SBP02 (YE-RD) | 20 | FUSE - 2 OR CIRCUIT BREAKER | |
4 | CPM22 (GY-BN) | 20 | SWITCH - POWER MIRROR # FOLD/DRIVE TOGGLE | |
5 | CPM01 (YE-GN) | 20 | CTRL MOD. - FOLD MIRRORS DRIVE POSITION |
Available Pigtail Kits
Pigtail Kit Part Number Service Part Number:
WPT-662 3U2Z-14S411-ZVA
Gauge:
