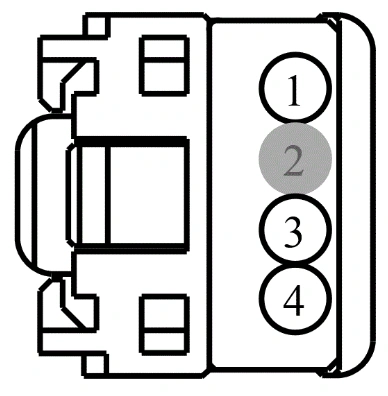

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME46 (GN) | 26 | JACK - AUDIO # EXT. AUX IN RIGHT (+) | |
2 | * | * | Not Used | |
3 | RME45 (YE) | 26 | JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-) | |
4 | VME45 (BU) | 26 | JACK - AUDIO # EXT. AUX IN LEFT (+) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1139 | Service Part Number: 3U2Z-14S411-PRC Gauge: 18 Pin material: Silver Cavities: 4 |
