Connector End View C3238 - Passenger Safety Belt Buckle

OEM Connector End Views

Source configuration appliesSource reference 4,396HTML edition

← Chapter contents Manual collection

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-ZAA

WPT-687

Gauge:

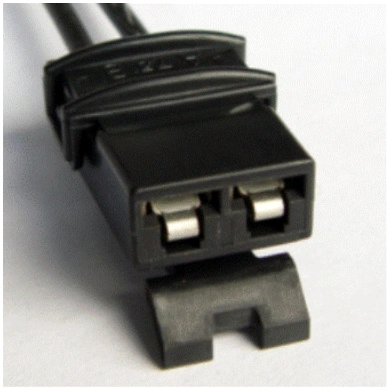

Connector End View C3238 - Passenger Safety Belt Buckle — original illustration 1, reference 4396Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

2

Vehicle Uses

Motor - Air Suspension Compressor

Switch - Dimmer (Instrument Panel)

CONNECTOR VIEWS > CONNECTOR END VIEW C3238 - PASSENGER SAFETY BELT

BUCKLE

Connector:C3238

Description

PASSENGER SAFETY BELT BUCKLE

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4396

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
