CONNECTOR VIEWS > CONNECTOR END VIEW C3212 - RH B-PILLAR SIDE IMPACT

SENSOR

Connector:C3212

Description

RH B-PILLAR SIDE IMPACT SENSOR

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

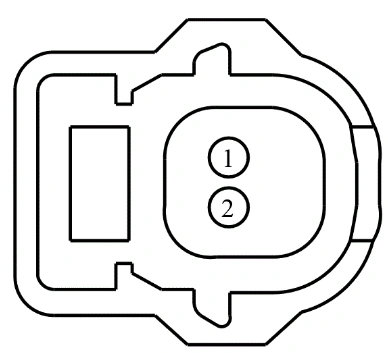

Connector End View C3212 - RH B-Pillar Side Impact Sensor — original illustration 1, reference 4393Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
