Camshafts — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,585HTML edition
← Chapter contentsManual collection

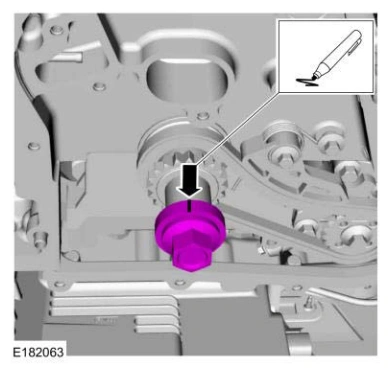

Camshafts — original illustration 1, reference 4585Original colors & callouts · Select to enlarge

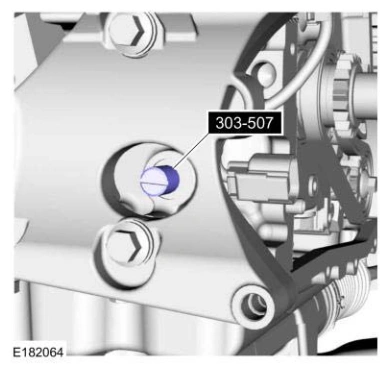

2. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Camshafts — original illustration 2, reference 4585Original colors & callouts · Select to enlarge

NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

3. Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.
