NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.
4. Lubricate the camshafts, camshaft journals and camshaft bearing caps with clean engine oil and install.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
Install the camshaft caps and the bolts.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

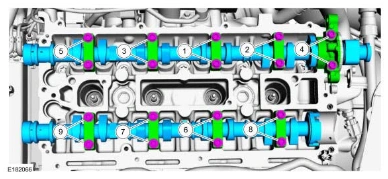

Tighten 2 turns at a time in the sequence shown in illustration in 2 stages.
Torque:
Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
5.
