Camshafts — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,587HTML edition
← Chapter contentsManual collection

Lubricate the camshafts journals with clean engine oil and install the camshaft cap and the bolts.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

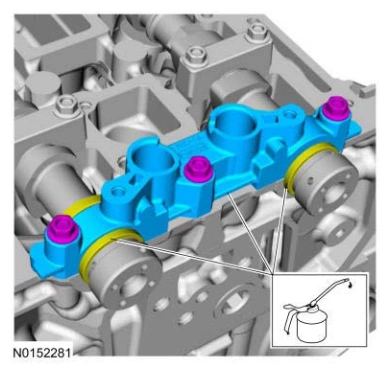

Camshafts — original illustration 1, reference 4587Original colors & callouts · Select to enlarge

6. Remove the spark plugs.

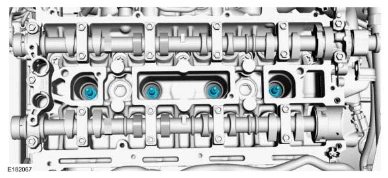

Camshafts — original illustration 2, reference 4587Original colors & callouts · Select to enlarge

7.

1. Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.

2. Use a feeler gauge to measure the clearance of each valve and record its location.

Use the General Equipment: Feeler Gauge

3.
