Camshafts — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,589HTML edition
← Chapter contentsManual collection

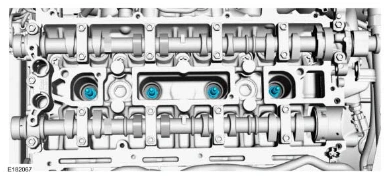

Camshafts — original illustration 1, reference 4589Original colors & callouts · Select to enlarge

10. Remove the bolts and the front camshaft cap.

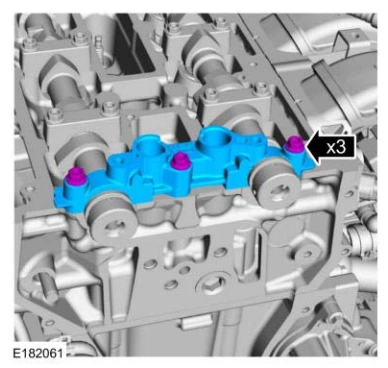

Camshafts — original illustration 2, reference 4589Original colors & callouts · Select to enlarge

NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

11. Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and camshafts.

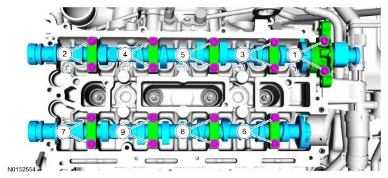

Camshafts — original illustration 3, reference 4589Original colors & callouts · Select to enlarge

12. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
