Camshafts — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4593

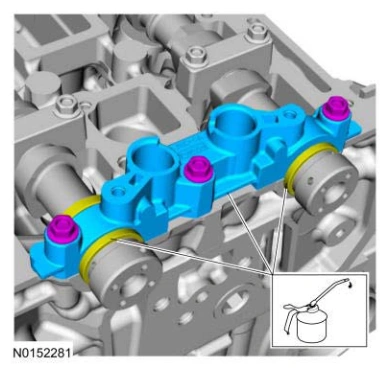

Stage 2: 142 lb.in (16 Nm)

Camshafts — original illustration 1, reference 4593Original colors & callouts · Select to enlarge

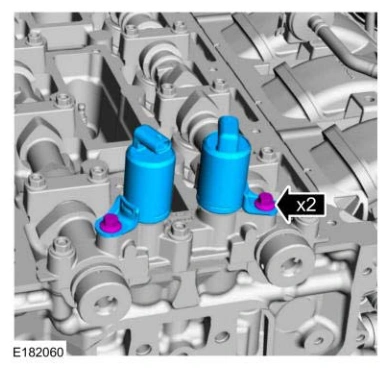

18. Install the VCT oil control solenoids and the bolts.

Torque

: 89 lb.in (10 Nm)

Camshafts — original illustration 2, reference 4593Original colors & callouts · Select to enlarge

NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

19. Install the special tool into the slots on the back of the camshafts.

Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.
