Crankshaft Front Seal — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,596HTML edition
← Chapter contentsManual collection

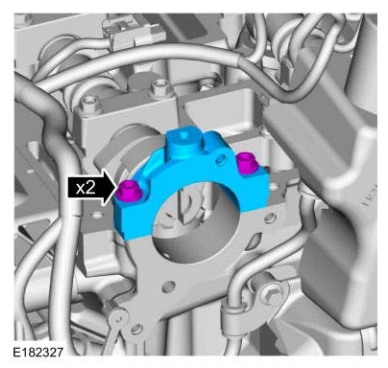

Remove the bolts and the rear intake camshaft cap.

Crankshaft Front Seal — original illustration 1, reference 4596Original colors & callouts · Select to enlarge

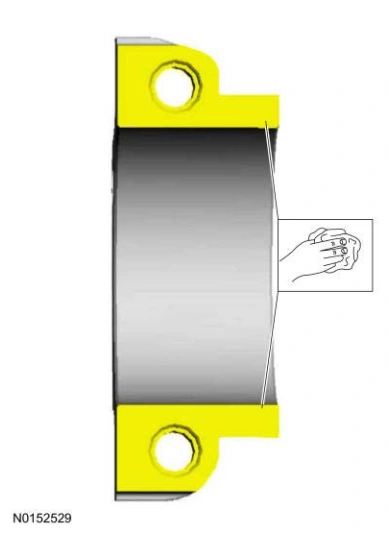

4. Clean the rear intake camshaft cap.

Crankshaft Front Seal — original illustration 2, reference 4596Original colors & callouts · Select to enlarge

5. Using a wrench on the flats of the intake camshaft to prevent cam rotation, remove the brake vacuum pump adapter.
