Crankshaft Front Seal — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4597

Crankshaft Front Seal — original illustration 1, reference 4597Original colors & callouts · Select to enlarge

6. Disconnect the A/C compressor electrical connectors and the wire harness retainers.

Crankshaft Front Seal — original illustration 2, reference 4597Original colors & callouts · Select to enlarge

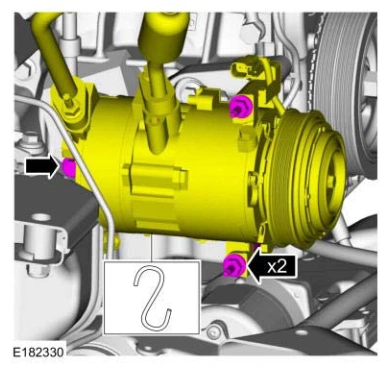

7. Remove the bolts, position and support the A/C compressor aside.

Crankshaft Front Seal — original illustration 3, reference 4597Original colors & callouts · Select to enlarge

Ford_Mustang_all_2015-2017.pdf · source reference 4597

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
