Crankshaft Front Seal — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,598HTML edition
← Chapter contentsManual collection

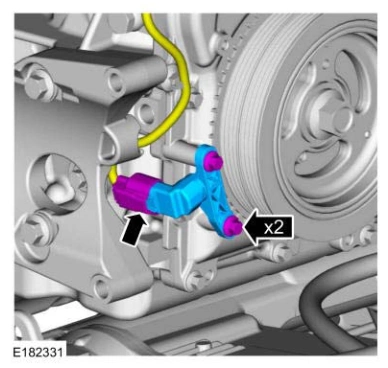

8. Remove the 2 bolts and the CKP sensor.

Disconnect the CKP sensor electrical connector.

Crankshaft Front Seal — original illustration 1, reference 4598Original colors & callouts · Select to enlarge

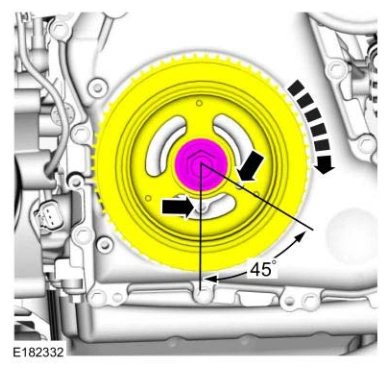

9. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.

Crankshaft Front Seal — original illustration 2, reference 4598Original colors & callouts · Select to enlarge

10. Remove the engine plug bolt.
