Crankshaft Front Seal — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4600

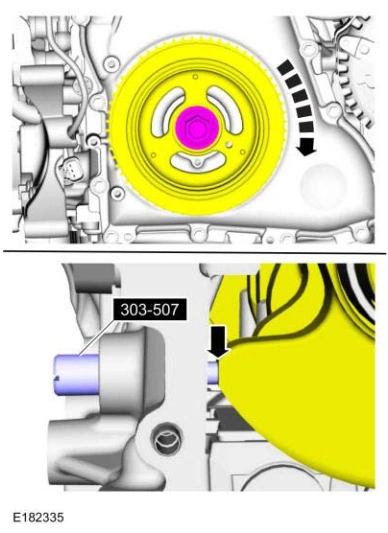

Crankshaft Front Seal — original illustration 1, reference 4600Original colors & callouts · Select to enlarge

NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

13. Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.

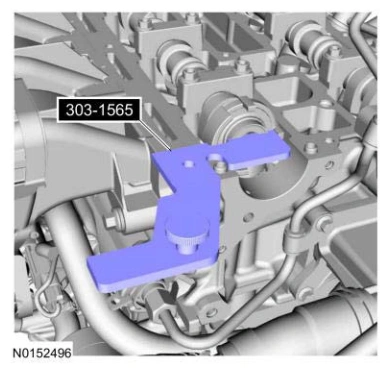

Crankshaft Front Seal — original illustration 2, reference 4600Original colors & callouts · Select to enlarge

NOTE: The crankshaft must remain in the TDC position during removal of the
