Crankshaft Front Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,602HTML edition
← Chapter contentsManual collection

removing the seal.

16. Using the special tools, remove the crankshaft front seal.

Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

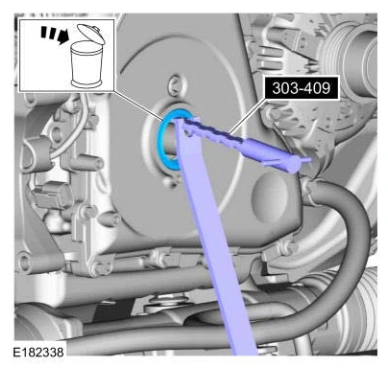

Crankshaft Front Seal — original illustration 1, reference 4602Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CRANKSHAFT FRONT SEAL > INSTALLATION

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

1. Using the special tools, install the crankshaft front seal.

Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Ford_Mustang_all_2015-2017.pdf · source reference 4602
