Crankshaft Front Seal — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4603

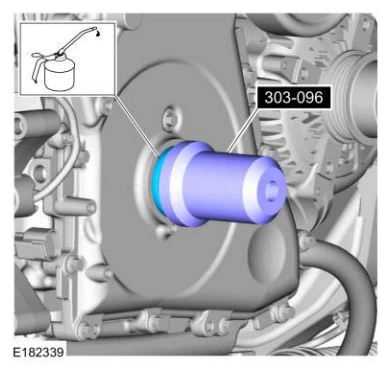

Crankshaft Front Seal — original illustration 1, reference 4603Original colors & callouts · Select to enlarge

NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley. The diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

2. Install the diamond washer onto the crankshaft.

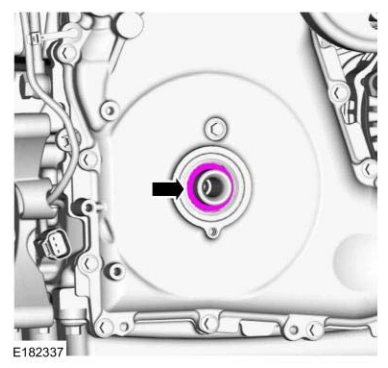

Crankshaft Front Seal — original illustration 2, reference 4603Original colors & callouts · Select to enlarge

3. Lubricate the crankshaft pulley with clean engine oil.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
