Crankshaft Front Seal — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4606

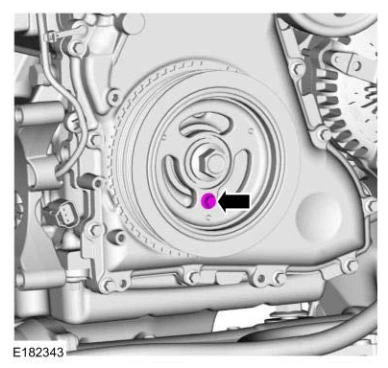

Crankshaft Front Seal — original illustration 1, reference 4606Original colors & callouts · Select to enlarge

8. Connect the CKP sensor electrical connector.

NOTE: Do not tighten the CKP sensor bolts at this time.

Install the CKP sensor and the bolts finger tight.

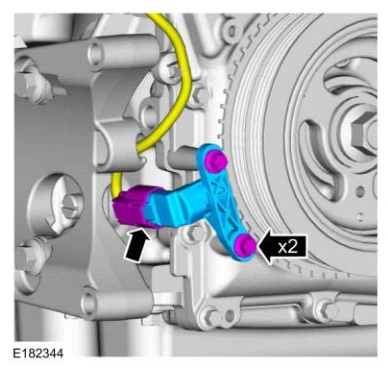

Crankshaft Front Seal — original illustration 2, reference 4606Original colors & callouts · Select to enlarge

9. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel.

Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Tighten the bolts.

Torque

: 62 lb.in (7 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4606
