Crankshaft Front Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,608HTML edition
← Chapter contentsManual collection

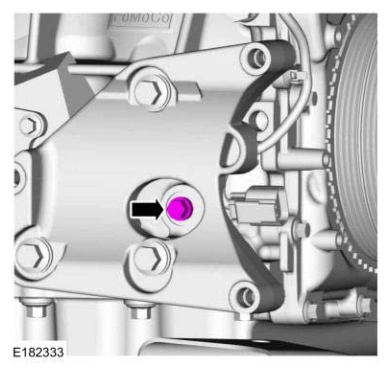

12. Install the engine plug bolt.

Torque

: 177 lb.in (20 Nm)

Crankshaft Front Seal — original illustration 1, reference 4608Original colors & callouts · Select to enlarge

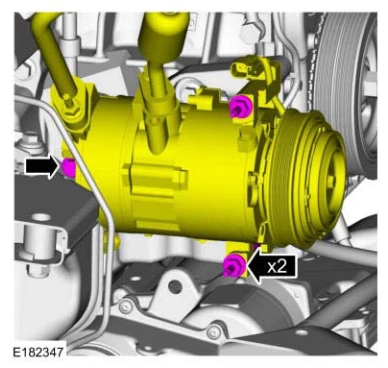

13. Position the A/C compressor and install the bolts.

Torque

: 18 lb.ft (25 Nm)

Crankshaft Front Seal — original illustration 2, reference 4608Original colors & callouts · Select to enlarge

14. Connect the A/C compressor electrical connectors and the wire harness retainers.
