Crankshaft Front Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,607HTML edition
← Chapter contentsManual collection

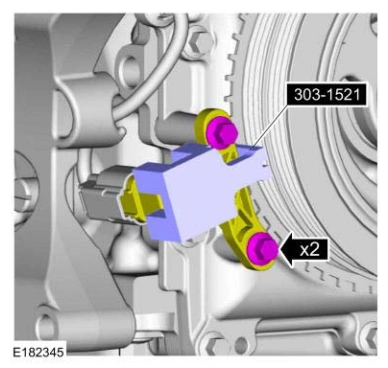

Crankshaft Front Seal — original illustration 1, reference 4607Original colors & callouts · Select to enlarge

10. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

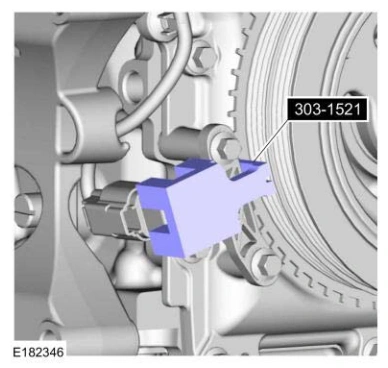

Crankshaft Front Seal — original illustration 2, reference 4607Original colors & callouts · Select to enlarge

11. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

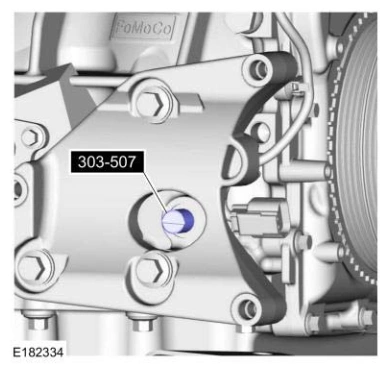

Crankshaft Front Seal — original illustration 3, reference 4607Original colors & callouts · Select to enlarge
