Crankshaft Front Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,604HTML edition
← Chapter contentsManual collection
Crankshaft Front Seal — original illustration 1, reference 4604Original colors & callouts · Select to enlarge

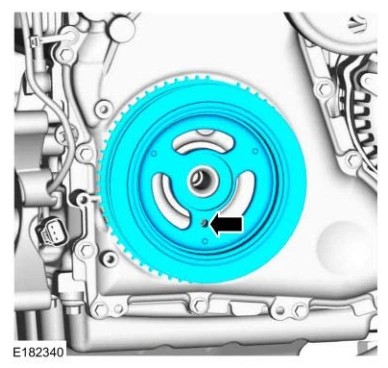

4. Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.

Crankshaft Front Seal — original illustration 2, reference 4604Original colors & callouts · Select to enlarge

NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

5. Install an M6 bolt.

Ford_Mustang_all_2015-2017.pdf · source reference 4604
