Crankshaft Front Seal — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4601

pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be removed using an air impact wrench (1/2-in drive minimum).

NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley.

14. Remove the bolt, washer and the crankshaft pulley.

Use the General Equipment: Strap Wrench

Discard the bolt.

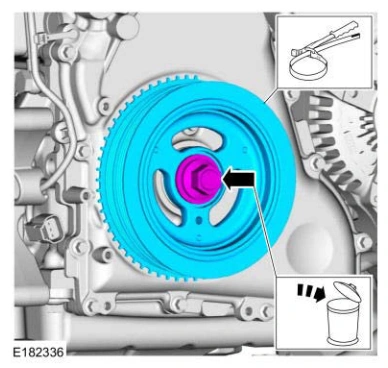

Crankshaft Front Seal — original illustration 1, reference 4601Original colors & callouts · Select to enlarge

15. If the diamond washer did not come off with the crankshaft pulley, remove the diamond washer.

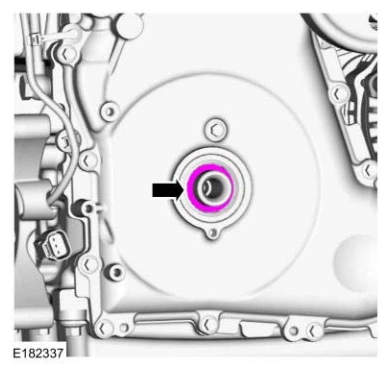

Crankshaft Front Seal — original illustration 2, reference 4601Original colors & callouts · Select to enlarge

NOTE: Use care not to damage the engine front cover or the crankshaft when
