Crankshaft Front Seal — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4599

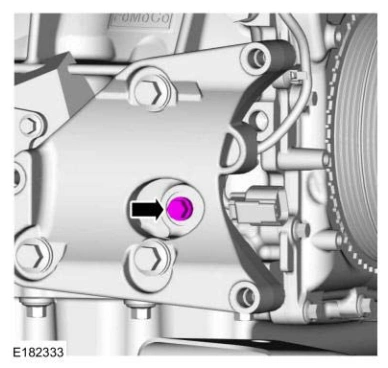

Crankshaft Front Seal — original illustration 1, reference 4599Original colors & callouts · Select to enlarge

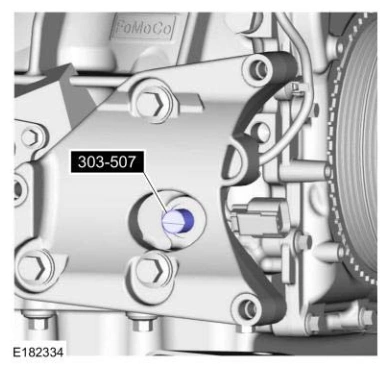

11. Install Special Service Tool: 303-507Timing Peg, Crankshaft TDC.

Crankshaft Front Seal — original illustration 2, reference 4599Original colors & callouts · Select to enlarge

NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

NOTE: The engine front cover is removed from graphic for clarity.

12. Rotate the crankshaft clockwise until the contacts the special tool.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
