Crankshaft Front Seal — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,605HTML edition
← Chapter contentsManual collection
Crankshaft Front Seal — original illustration 1, reference 4605Original colors & callouts · Select to enlarge

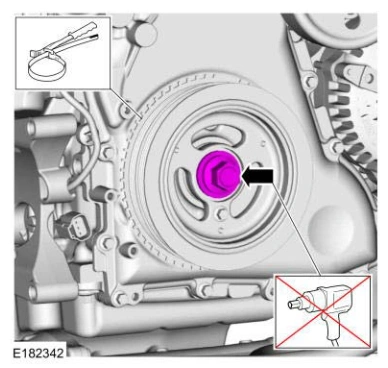

NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be installed using hand tools only.

6. Install the crankshaft bolt and washer and tighten.

Use the General Equipment: Strap Wrench

Torque:

Stage 1: 74 lb.ft (100 Nm)

Stage 2: 90°

Crankshaft Front Seal — original illustration 2, reference 4605Original colors & callouts · Select to enlarge

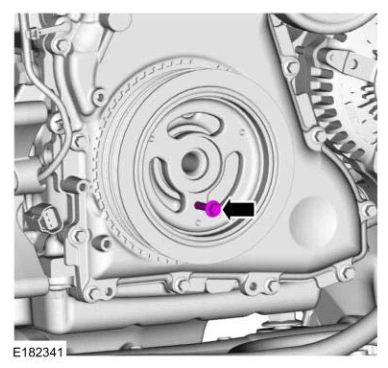

7. Remove the M6 bolt.

Ford_Mustang_all_2015-2017.pdf · source reference 4605
